2.5” SATA SSD SAT5200-1920G

$0.00

SKU: HD-SAT522T Categories: , Tags: ,

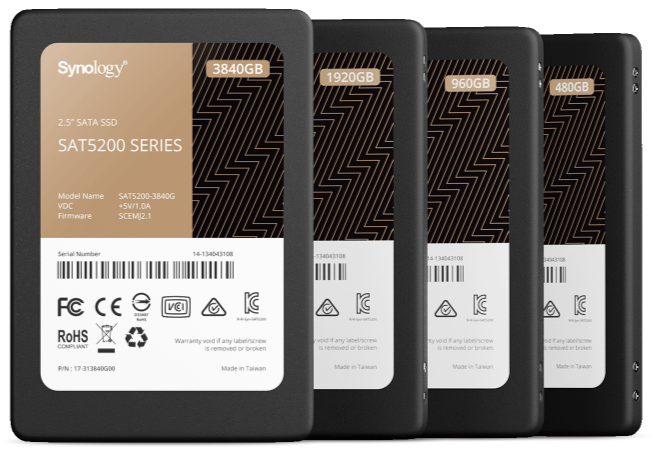

SAT5200 – 2.5″ SATA SSD
• Delivers stable performance of over 60,000 4K random write IOPS for demanding I/O
• Suitable for intensive and mixed storage workloads with 1.3 DWPD2
• End-to-end data protection and power loss protection prevent data corruption
• Actionable insight helps make optimal use of SAT5200 SSD performance and longevity
• Proven interoperability with Synology systems through rigorous validationSupported models
SAT5200-1920G & SAT5200-3840G：FS6400, FS3600, FS3400, SA3600, SA3400, RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+, DVA3221, RS820RP+, RS820+, DS1520+, DS920+, DS720+, DS620slim, DS420+, DS220+, RS1619xs+, RS1219+, DS1819+, DS1019+, DS419slim, DVA3219, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+, DS918+, DS718+, DS418play, DS218+, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS1817+, DS1517+, RS18016xs+, RS2416RP+, RS2416+, DS916+, DS716+II, DS716+, DS416play, DS416slim, DS216+II, DS216+, DS3615xs

Incompatible Models (SAT5200-1920G & SAT5200-3840G)：FS3017, FS2017, FS1018, DS2419+, DS2415+

Description

硬體規格 SAT5200-480G SAT5200-960G SAT5200-1920G SAT5200-3840G
一般規格 容量 480 GB 960 GB 1.92 TB 3.84 TB
尺寸規格 2.5″ 7mm 2.5″ 7mm 2.5″ 7mm 2.5″ 7mm
傳輸介面 SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
效能 Sustained Sequential read (128 KB, QD32) 530 MB/s 530 MB/s 530 MB/s 530 MB/s
Sustained Sequential write (128 KB, QD32) 500 MB/s 500 MB/s 500 MB/s 500 MB/s
Sustained Random Read (4KB, QD32) 95,000 IOPS 98,000 IOPS 98,000 IOPS 98,000 IOPS
Sustained Random Write (4KB, QD32) 55,000 IOPS 67,000 IOPS 60,000 IOPS 58,000 IOPS
備註 All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
耐寫度與可靠度 寫入兆位元組 (Terabytes Written，TBW)* 1,145 TB 2,290 TB 4,581 TB 9,162 TB
每日全碟寫入次數 (Drive Writes Per Day，DWPD) 1.3 1.3 1.3 1.3
平均故障間隔時間 (Mean Time Between Failures，MTBF) 1.5 百萬小時 1.5 百萬小時 1.5 百萬小時 1.5 百萬小時
無法修正位元錯誤率 (Uncorrectable Bit Error Rate，UBER) < 1 sector per 1017 bits read < 1 sector per 1017 bits read < 1 sector per 1017 bits read < 1 sector per 1017 bits read
斷電保護
保固* 5 年 5 年 5 年 5 年
備註
  • 基於 JESD219A 企業的工作負載。
  • 5 年有限保固服務涵蓋範圍為至保固期結束，或達到硬碟規格所標示之耐寫度上限，以較早結束者為準。(查看更多內容)
電源消耗功率 供電電壓 5V (± 5%) 5V (± 5%) 5V (± 5%) 5V (± 5%)
讀取 – 運作中 2.6 W 2.9 W 3.1 W 3.6 W
寫入 – 運作中 4.2 W 4.6 W 5.1 W 6.2 W
閒置 1.4 W 1.5 W 1.6 W 1.9 W
備註 電源消耗功率可能因設定、平台不同而有所差異。
溫度 作業溫度 0°C 至 70°C (32°F 至 158°F) 0°C 至 70°C (32°F 至 158°F) 0°C 至 70°C (32°F 至 158°F) 0°C 至 70°C (32°F 至 158°F)
儲存溫度 -40°C 至 85°C (-40°F 至 185°F) -40°C 至 85°C (-40°F 至 185°F) -40°C 至 85°C (-40°F 至 185°F) -40°C 至 85°C (-40°F 至 185°F)
其他項目 大小 (高 X 寬 X 深) 7 mm x 69.85 mm x 100 mm 7 mm x 69.85 mm x 100 mm 7 mm x 69.85 mm x 100 mm 7 mm x 69.85 mm x 100 mm
認證機構
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
相容性
適用機種

Additional information

Dimensions 0.7 × 6.985 × 10.2 cm
