Description

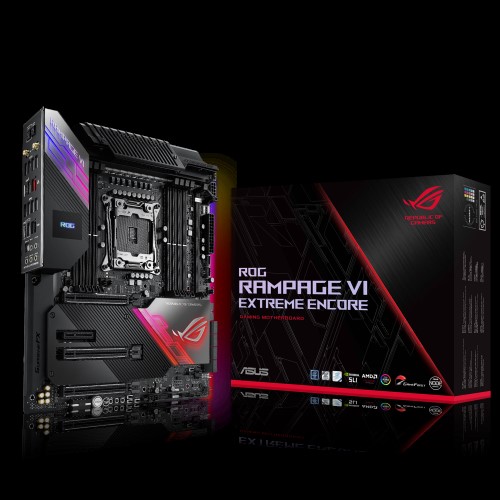

Intel Core X 系列處理器專用的 Intel X299 E-ATX 主機板 LGA 2066 具備 16 個功率級、內建 Wi-Fi 6 (802.11ax)、10 Gbps 乙太網路、USB 3.2 Gen 2×2、雙 USB 3.2 Gen 2 前面板接頭、SATA、四個 M.2 及 Aura Sync RGB 燈效
- 支援最新的 Intel® Core™ X 系列處理器，配備最多四個 M.2 磁碟機、USB 3.2 Gen 2×2、Intel® VROC 及 Intel® Optane™ 記憶體相容性，以提升連接能力及速度
- 卓越的供電效能： 具備 16 個 Infineon TDA21472 功率級、ProCool II 電源接頭、MicroFine 合金電感及 10K 電容的最佳電源解決方案
- AI Overclocking： 可依據 CPU 及散熱器狀態將 CPU 效能快速最佳化，成效極其接近專家手動調校後的狀態
- 全方位散熱設計： 主動式 VRM 散熱片、PCIe 區 M.2 鋁製散熱片、背板、風扇擴充卡 II 及水冷散熱區
- 高效能網路： 內建 Aquantia® 10 Gbps 乙太網路、支援 MU-MIMO 的 Wi-Fi 6 (802.11ax)，以及 GameFirst V 技術
- 無可比擬的個人風格： 彩色 OLED 和 ASUS 獨家 Aura Sync RGB 燈效，包含兩個額外的 RGB 插座及兩個 Gen 2 RGB 可定址插座
- 引領業界的 ROG 音效： SupremeFX S1220 及 ESS® SABRE9018Q2C 可呈現出日本製電容帶來的玩家級音效表現
- DIY 貼心設計： 預裝 I/O 護板、ASUS SafeSlot、BIOS Flashback 及 FlexKey
產品規格 :
- CPU
Intel® Socket 2066 Core™ X-Series 處理器
Optimized for Intel® Core™ X-Series 10000 Processor Family
支援 Intel® 14 nm CPU*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® Turbo Boost Max Technology 3.0
* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types. - 晶片組
Intel® X299
- 記憶體
8 x DIMM, 最高可支援到256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz 非ECC, 無緩衝區 記憶體
(Intel® Core™ i9 10000 X-Series CPU)
Quad Channel 記憶體架構
支援 Intel® Extreme Memory Profile (XMP)
*是否支援 Hyper DIMM 需視個別 CPU 的實體特性而定。
*有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz 非ECC, 無緩衝區 Memory - 多GPU支援
支援 NVIDIA® 3-Way SLI™ 技術
Supports NVIDIA® 2-Way SLI® Technology
支援 AMD 3-Way CrossFireX™ 技術
Supports AMD 2-Way CrossFireX Technology - 擴充槽
48-Lane CPU-
(Intel® Core™ i9 10000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1
44-Lane CPU-
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2
28-Lane CPU-
(Intel® Core™ i7 7000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x8/x4 mode)
Intel® X299 Chipset
1 x PCIe 3.0 x4 *3 - 資料儲存應用
Intel® Core™ X-Series Processors Family :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
Intel® Rapid Storage Technology Enterprise supports
Intel® X299 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5
8 x SATA 6Gb/s埠
支援Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready - 區域網路
Aquantia AQC-107 10G
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology - 無線資料網路
Intel® Wi-Fi 6 AX200
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed - 藍牙裝置
Bluetooth® 5.0
- 音效
ROG SupremeFX 8 通道 高傳真音效 CODEC S1220
– 支援 : 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– SupremeFX Shielding Technology
– ESS®SABRE9018Q2C DAC/AMP
– Supports up to 32-Bit/192kHz playback *6
Audio Feature :
– 光纖 S/PDIF 輸出埠位於背板
– DTS® Sound Unbound
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer - USB連接埠
Rear USB Port
1 x USB 3.2 Gen 2×2 (up to 20Gbps) port(s)
(1 x Type-C)
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)
(1 x Type-A + USB Type-CTM)
8 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
(8 x Type-A)
1 x USB 2.0 port(s)
(1 x Type-A)
Front USB Port
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s) - 獨家超頻功能
Clear CMOS button
Extreme Engine Digi+ :
– MicroFine Alloy Chokes
– 10K Black Metallic Capacitors
ROG Extreme OC kit :
– OptiMem III
– ReTry button
– Safe Boot button
– Start button
– Slow Mode
– LN2 Mode
– EZ Plug
– FlexKey Button
ProbeIt
ROG Exclusive Software
– Mem Tweakit
– RAMCache III
– RAMDisk
– CPU-Z
– GameFirst V
– Sonic Radar III
– Overwolf
– Sonic Studio III + Sonic Studio Virtual Mixer
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover - 獨特功能
華碩雙核心處理器5-Way Optimization by Dual Intelligent Processors 5 :
AI Overclocking
華碩獨家功能 :
– USB BIOS Flashback™
– AI Suite 3
– Ai Charger
– ASUS CrashFree BIOS 3
– Armoury Crate
– Pre-mounted I/O Shield
– ASUS NODE: hardware control interface
– ASUS C.P.R.(CPU Parameter Recall)
華碩 Q-Design :
– 華碩 Q-LED (CPU, DRAM, VGA, Boot Device LED)
– 華碩 Q-Slot
– 華碩 Q-DIMM
– 華碩 Q-Connector
LiveDash OLED 1.77 ”
AURA :
– Aura Lighting Control
– Aura RGB Strip Headers
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
– Addressable Gen 2 Header
Armoury Crate - 後面板輸出端子
1 x 光纖 S/PDIF 輸出
1 x Clear CMOS 按鈕
1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C)
1 x USB 2.0
1 x USB BIOS Flashback™ Button(s)
1 x ASUS Wi-Fi Module
5 x LED-illuminated audio jacks
8 x USB 3.2 Gen 1 (up to 5Gbps) ports
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
1 x Aquantia AQC-107 10G LAN port
Anti-surge LAN (RJ45) port - 內建 I/O 連接孔
2 x USB 3.0 接頭支援額外的 4 USB 3.0 連接埠
1 x USB 2.0 接頭支援額外的 2 USB 2.0 連接埠
1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x WB_SENSOR
8 x SATA 6Gb/s 接頭
2 x Aura Addressable Strip Header(s)
1 x CPU 風扇接頭
3 x 機殼風扇接頭
2 x Aura RGB Strip Headers
1 x 24-pin EATX 電源接頭
1 x 4-pin EZ_PLUG 電源接頭
1 x 前面板音訊接頭 (AAFP)
10 x ProbeIt 測量點
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x BIOS 開關按鈕
1 x VROC_HW_Key
1 x CPU OPT Fan connector(s)
1 x H_AMP fan connector
1 x HS_FAN
2 x 8-pin EATX 12V Power connectors
1 x 6-pin EZ_PLUG Power connector(s)
1 x Slow Mode switch(es)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
2 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
2 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x PAUSE Switch
1 x RSVD Switch
1 x FlexKey button
1 x FS Mode switch - 配件
使用者手冊
6 x Serial ATA 6.0Gb/s 纜線
1 x ROG logo plate sticker
3 x M.2 Screw Package
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x Q-Connector
1 x ROG Logo Sticker(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x ROG coaster(s)
1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable
1 x ROG weave SATA 6G cable
1 x ROG DIMM.2 with heatsink
1 x M.2 Pad for ROG DIMM.2
1 x 2-in-1 Rubber pad
1 x ROG Multi-Bit screwdriver - BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
- 管理能力
WfM 2.0, WOL by PME, PXE
- 支援光碟
Overwolf
Daemon Tools Software
WinRAR
Anti-virus software (1-year full subscription) - 作業系統
Windows® 10 64-bit
- 主機板尺寸
Extended ATX 主機板尺寸
12 吋 x 10.9 吋 ( 30.5 公分 x 27.7 公分 ) - 備註
*1 When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be disabled.
*2 When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled.
*3 The PCIe 3.0 x4 slot shares bandwidth with M.2_2.
*4-1 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8 mode on 48-Lane CPU.
*4-2 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4 mode on 44-Lane CPU.
*4-3 DIMM.2 will be disabled when using 28-Lane CPU.
*5 The PCIe 3.0 x4 slot shares bandwidth with M.2_2.
*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*7 USB 3.2 Gen 2×2 will be disabled when using 28-Lane CPU.
