Description

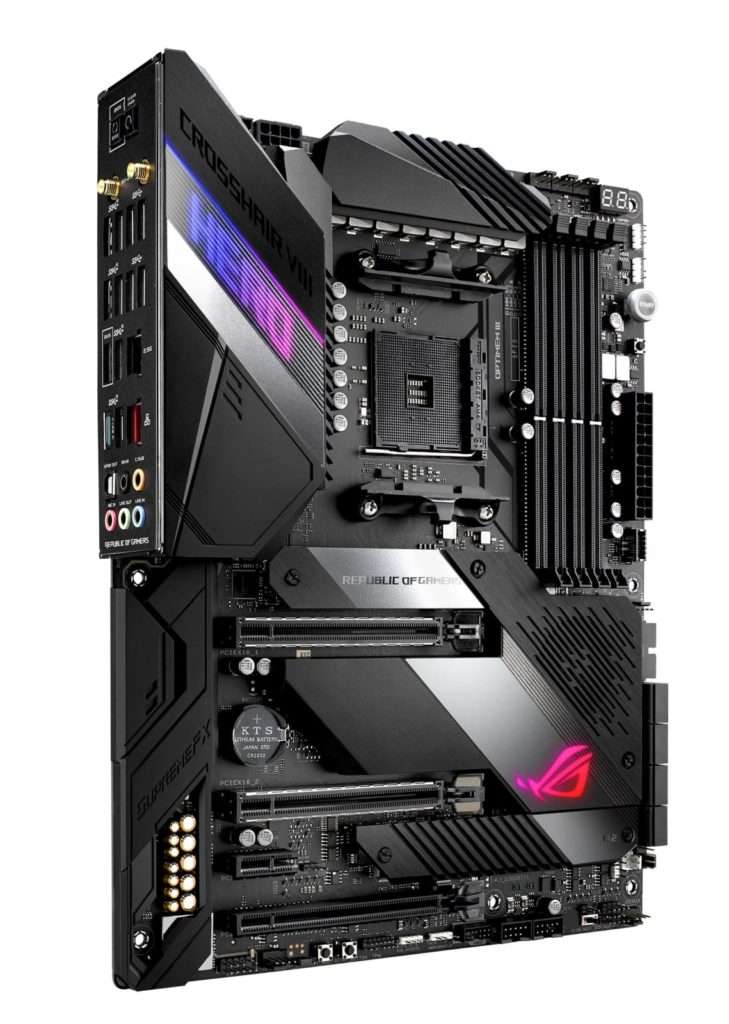

AMD X570 ATX gaming motherboard with PCIe 4.0, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximise connectivity and speed.
- Comprehensive thermal design: Active PCH heatsink, M.2 aluminium heatsink and ROG Cooling Zone.
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
- 5-Way Optimisation: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
- Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers
- Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
產品規格 :
- CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
* 有關支援的 CPU 型號資訊，請參閱www.asus.com 網站內容。 - 晶片組
AMD X570
- 系統記憶體
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
雙通道 Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* 有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。 - Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
支援 AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology - 擴充槽
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1 - 儲存裝置
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 - LAN
Intel® I211-AT
Realtek® RTL8125-CG 2.5G LAN
ASUS LAN Guard
ROG GameFirst Technology - 無線資料網路
Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed - Bluetooth
Bluetooth® 5.0
- 音效
ROG SupremeFX 8通道 高傳真音效 CODEC
– 支援 : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Impedance sense for front and rear headphone outputs
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– SupremeFX Shielding Technology
– ESS® ES9023P
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– Sonic Studio III + Sonic Studio Virtual Mixer
– DTS® Sound Unbound
– Optical S/PDIF out port(s) at back panel
– Sonic Radar III
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - USB Ports
3rd Gen AMD Ryzen™ Processors :
4 x USB 3.2 Gen 2 port(s)
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
6 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
4 x USB 2.0 port(s) - 超頻功能
Extreme Engine Digi+ :
– IR3555 PoweIRstage®
– MicroFine Alloy Chokes
– 10K Black Metallic Capacitors
ROG Extreme OC kit :
– OptiMem III
– Safe Boot button
– Slow Mode
– LN2 Mode
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
– Sonic Studio III + Sonic Studio Virtual Mixer
– RAMCache III
– RAMDisk
– CPU-Z
– GameFirst V
– Sonic Radar III - 獨特功能
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
華碩獨家功能 :
– USB BIOS Flashback®
– AI Suite 3
– Ai Charger
– ASUS CrashFree BIOS 3
– Armoury Crate
– ASUS NODE: hardware control interface
– ASUS EZ Flash 3
– ASUS C.P.R.(CPU Parameter Recall)
– Clear CMOS Button
– Reset Button
– Start Button
– ReTry button
AURA :
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Q-Design :
– ASUS Q-Code
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector - 背板 I/O 埠
1 x 光纖 S/PDIF 輸出
1 x Clear CMOS button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) port - Internal I/O
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
8 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭
3 x 機殼風扇接頭
2 x Aura RGB Strip Headers
1 x 24-pin EATX 電源接頭
2 x Addressable Gen 2 header(s)
1 x 前面板音訊接頭 (AAFP)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
1 x CPU OPT Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 8-pin EATX 12V Power connectors
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports - 配件
使用者手冊
4 x Serial ATA 6.0Gb/s 纜線
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card - BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
- 管理能力
WOL, PXE
- 作業系統
Windows® 10 64-bit
- 主機板尺寸
ATX 主機板尺寸
12 inch x 9.6 inch ( 20.5 cm x 24.4 cm )
