Description

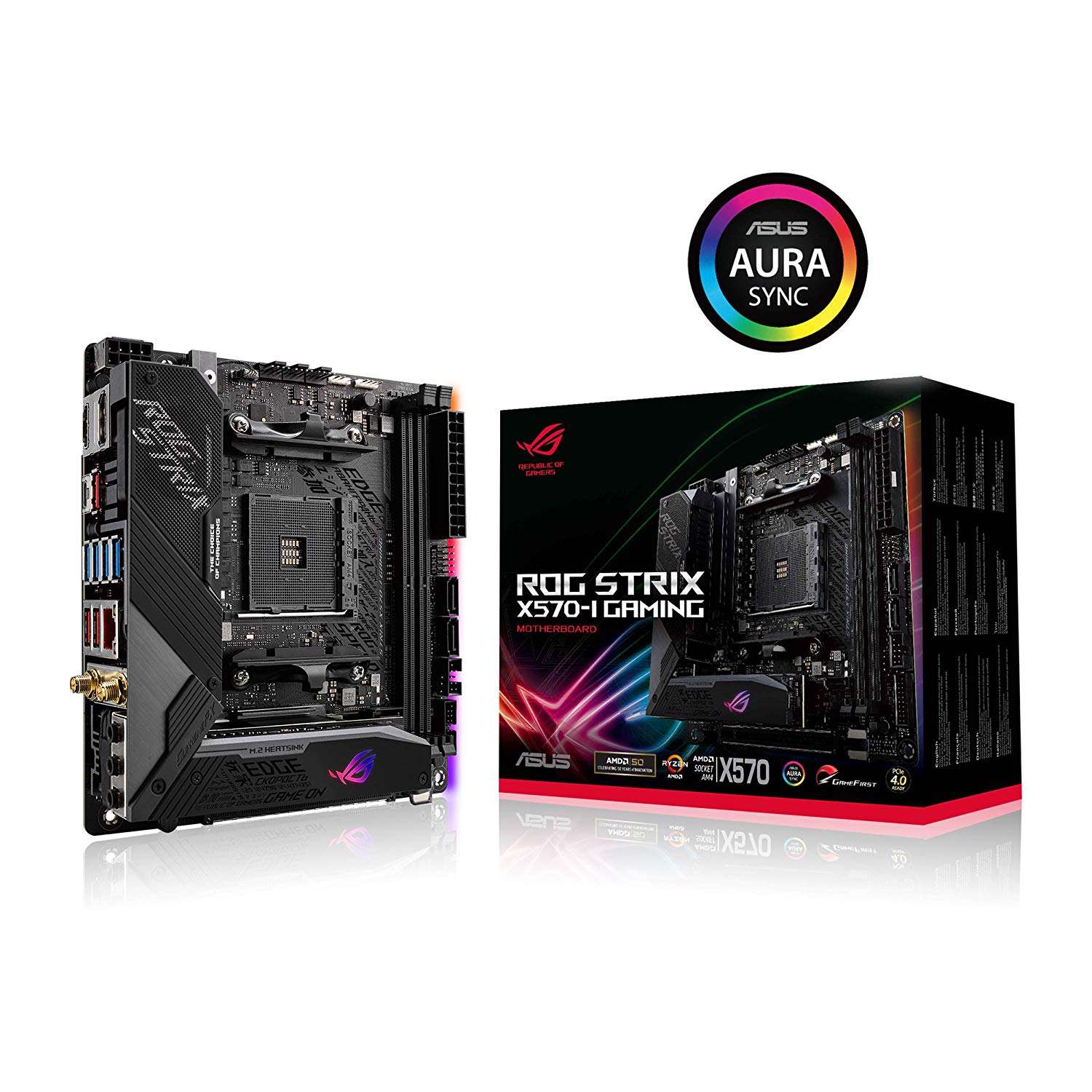

AMD X570 ATX 電競主機板配備 PCIE 4.0、AURA SYNC RGB 燈光效果、INTEL GIGABIT 乙太網路 、WI-FI 6 (802.11AX)、雙 M.2 含散熱器、HDMI 2.0 和 DISPLAYPORT 1.4 SATA 6GB/S 及 USB 3.2 GEN 2
- AM4 插槽： 支援第 2 和第 3 代 AMD Ryzen™ 處理器，透過多達兩個 M.2 磁碟機、USB 3.2 Gen2 和 AMD StoreMI 將連線能力和速度最大化
- Aura Sync RGB： ASUS 獨家 Aura Sync RGB 燈效，包括 RGB 插座和可定址 Gen 2 插座
- 全方位散熱設計：主動式 PCH 散熱器、內建M.2 鋁製散熱器和帶有網絡文字圖案的鋁背板,有助於散熱
- 遊戲連線功能：支援 PCIe 4.0、HDMI 2.0、DisplayPort 1.4 並配備雙 M.2 以及 USB 3.2 Type-A 與 Type-C 連接器
- 電競連網功能：Intel Gigabit Ethernet、ASUS LANGuard 及 Wi-Fi 6 (802.11ax) 具備 MU-MIMO 支援 GameFirst V 軟體
- 5 向全系統優化：自動化全系統調校，提供專為您的配備量身打造的超頻與散熱設定檔
- 電競音效：搭載 SupremeFX S1220A 、DTS® Sound Unbound 及 Sonic Studio III 以提供高傳真音效，讓您完全沉浸在遊戲世界中
- Gamer’s Guardian 技術: ASUS SafeSlot和頂級組件提供玩家最大耐用性
產品規格 :
- CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics 處理器
*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。
- 晶片組
AMD X570
- 記憶體
2 x DIMM, 最高可支援到64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200 (O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz 非ECC, 無緩衝區 記憶體 *
3rd Gen AMD Ryzen™ Processors
雙通道 記憶體架構
*有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。
2nd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz 非ECC, 無緩衝區 Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz 非ECC, 無緩衝區 Memory - 顯示晶片
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
支援多 VGA 輸出 : HDMI/DisplayPort 連接埠
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz - 擴充槽
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode) - 資料儲存應用
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s埠,
支援Raid 0, 1, 10 - 區域網路
Intel® I211-AT
Anti-surge LANGuard
ROG GameFirst Technology - 無線資料網路
Intel® Wi-Fi 6 AX200
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed - 藍牙裝置
Bluetooth® 5.0
- 音效
SupremeFX 8 通道 高傳真音效 CODEC S1220A
– Dual OP Amplifiers
– 支援 : 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能
– Impedance sense for front and rear headphone outputs
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback *2
Audio Feature :
– DTS® Sound Unbound
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer - USB連接埠
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 連接埠 (4 位於背板, 藍色)
AMD X570 chipset :
4 x USB 3.2 Gen 2 連接埠 (3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 連接埠 (2 位於主機板中)
AMD X570 chipset :
2 x USB 2.0 連接埠 - 獨家超頻功能
ROG Exclusive Software
– RAMCache III
– CPU-Z
– GameFirst V
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer - 獨特功能
華碩 EPU :
– EPU
5-Way Optimization by Dual Intelligent Processors 5
– Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
– Auto Tuning, TurboV, GPU Boost
華碩獨家功能 :
– AI Suite 3
– Ai Charger
華碩 EZ DIY :
– 華碩 CrashFree BIOS 3
– 華碩 EZ Flash 3
華碩 Q-Design :
– 華碩 Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Shield
– 華碩 Q-Slot
– 華碩 Q-DIMM
AURA :
– Aura Lighting Control
– Addressable Gen 2 Header - 後面板輸出端子
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks
4 x USB 3.2 Gen 1 (blue)
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port - 內建 I/O 連接孔
1 x USB 2.0 接頭支援額外的 2 USB 2.0 連接埠
1 x HS_FAN
1 x PCH_FAN
4 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭
1 x 機殼風扇接頭
1 x AAFP connector
1 x 24-pin EATX 電源接頭
1 x 8-pin ATX 12V 電源接頭
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x 前面板音訊接頭 (AAFP)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x 熱感測器接頭
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x Clear CMOS 跳線
1 x AIO_PUMP connector
1 x System panel connector
1 x T_Sensor Connector
1 x Speaker connector - 配件
使用者手冊
I/O 擋板
4 x Serial ATA 6.0Gb/s 纜線
1 x 束線帶
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x AAFP Extension Cable
1 x Panel cable
1 x ROG Thank you card - BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
- 管理能力
WOL, PXE
- 支援光碟
Overwolf
Anti-virus software (OEM version)
WinRAR - 作業系統
Windows® 10 64-bit
- 主機板尺寸
Mini ITX 主機板尺寸
6.7 吋 x 6.7 吋 ( 17 公分 x 17 公分 ) - 備註
*1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
