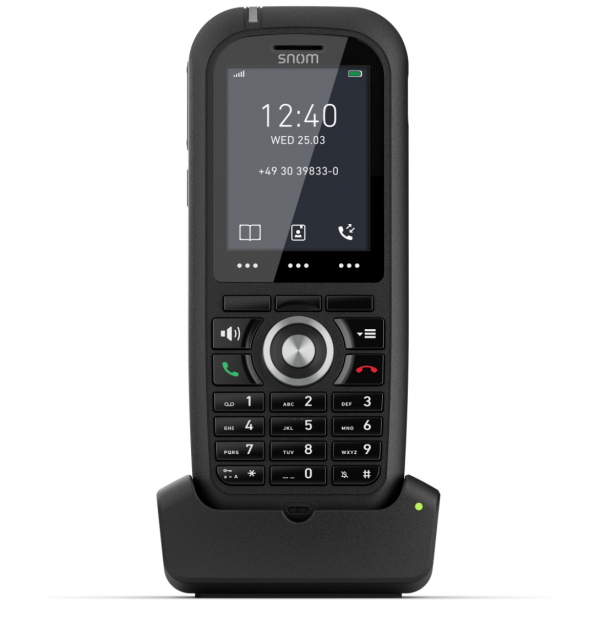

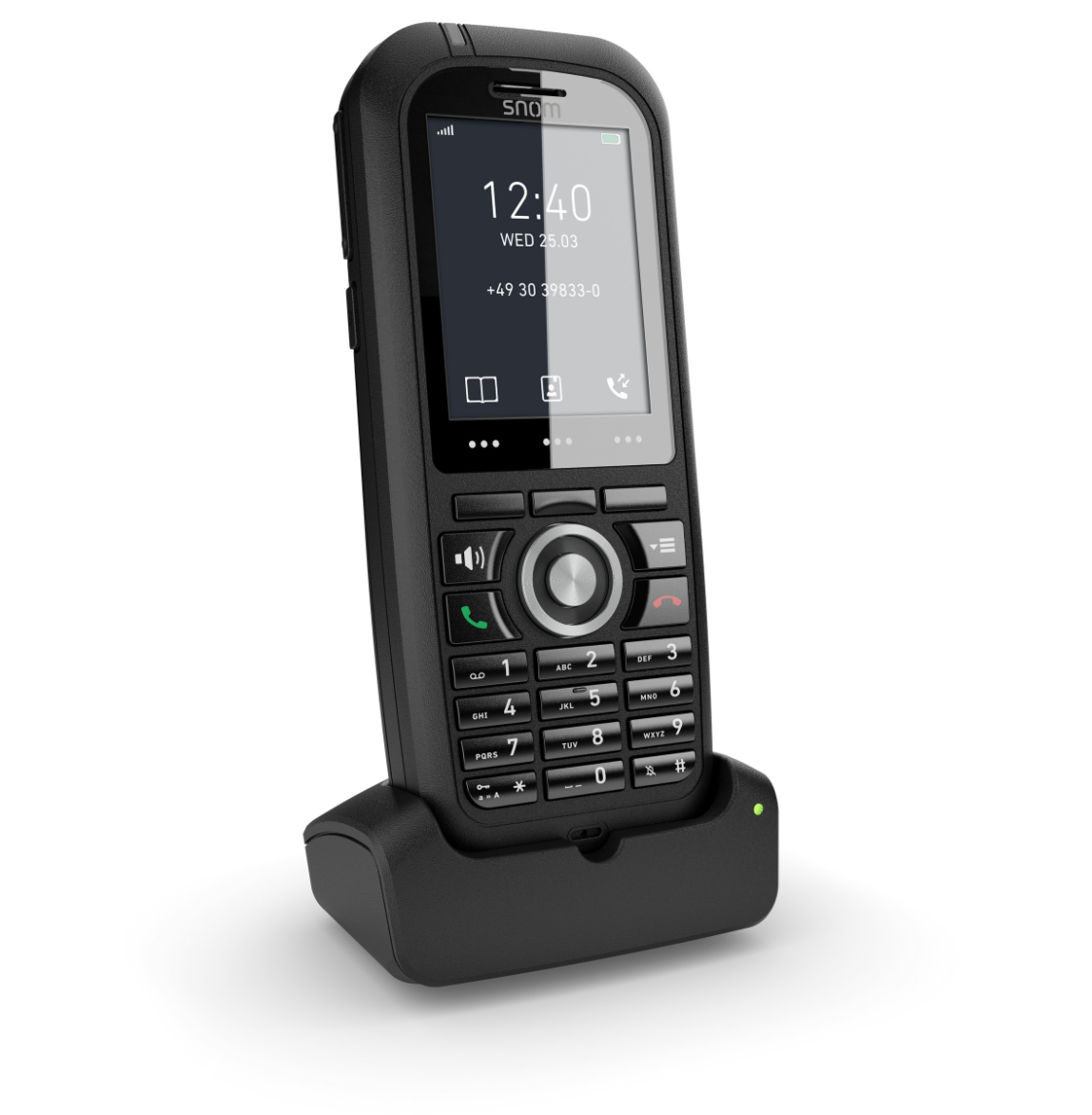

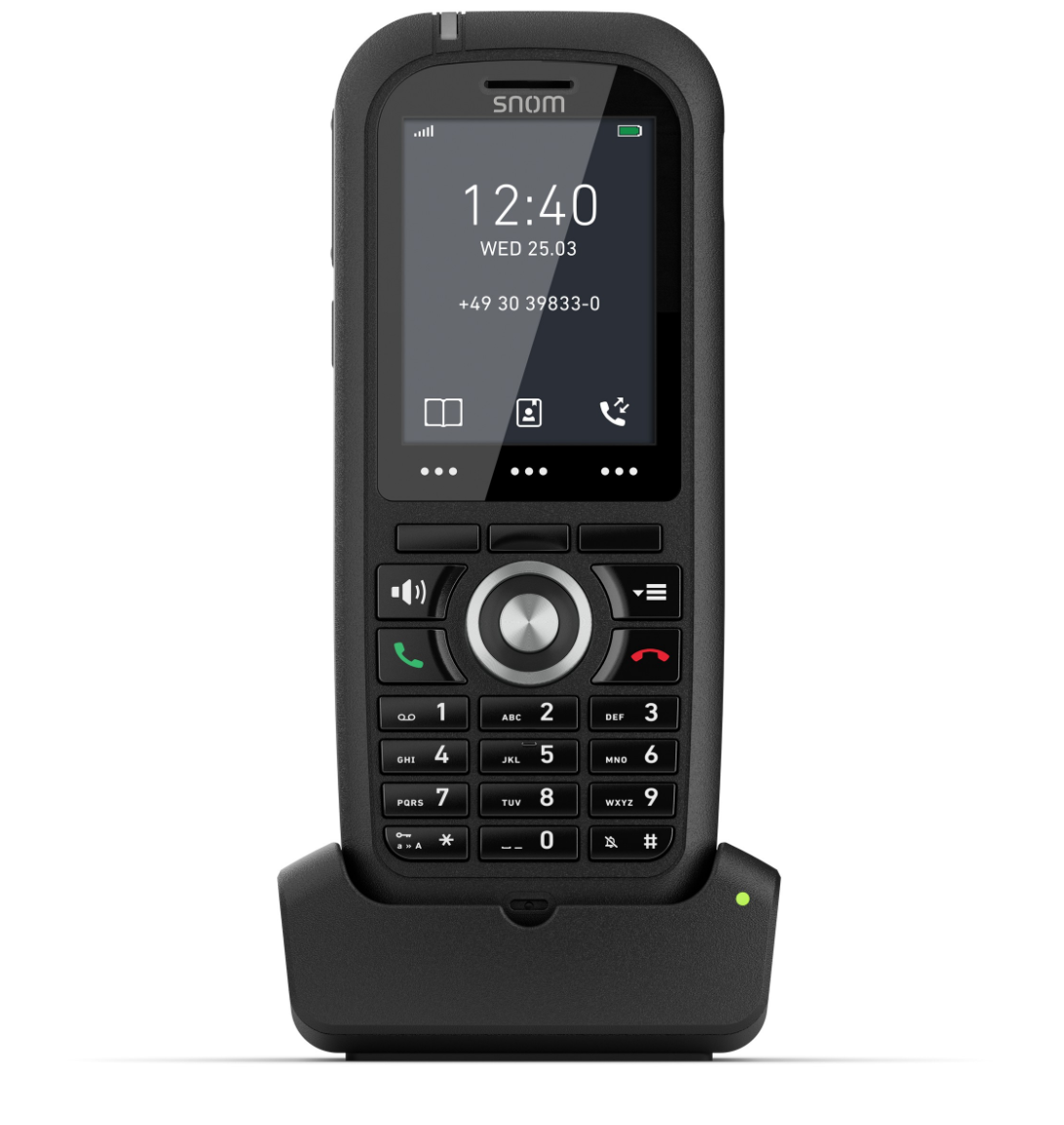

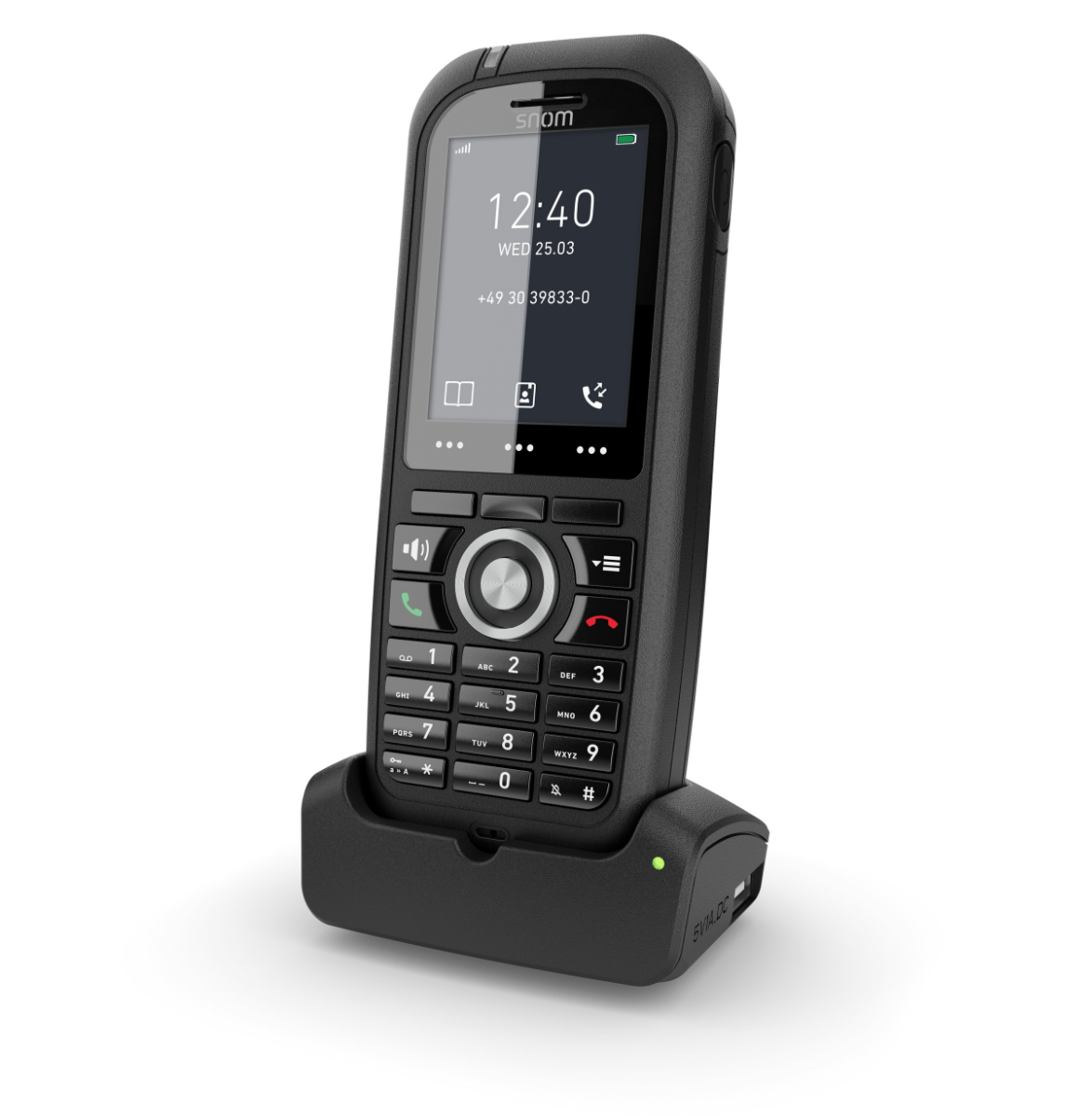

Snom M80 DECT handset

$0.00

SKU: Snom M80 Category: Tags: ,
  • The Snom M80 is the perfect all-rounder for indoor and outdoor use. The handset is extremely light and compact and thanks to the special heavy-duty jacket (IP 65 and MIL-STD 810g certified) it is particularly robust and durable. This means that the ultra-modern handset can easily withstand falls of up to 2 metres and is also protected from splash water and dust. This makes the M80 not only suitable for the office, but also for more complicated locations such as warehouses, construction sites or outdoor areas exposed to the elements.

    The compact device, which weighs only 120g, has integrated Bluetooth and alarm functionality. Pair a widely used Bluetooth headset for wire and tangle free operation while roaming around the job site. The programmable alarm key and sensors can be used to send an automatic cry for help to any chosen number when triggered.

    This modern DECT telephone is also state-of-the-art thanks to its high-resolution LED colour display, integrated Bluetooth, best HD audio and vibration alarm. In addition, there is a high-performance rechargeable battery that provides up to 12 hours of talk time.

    The Snom M80 handset is a modern, compact and heavy-duty companion for both indoor and outdoor use in everyday business.

Description

Handset:

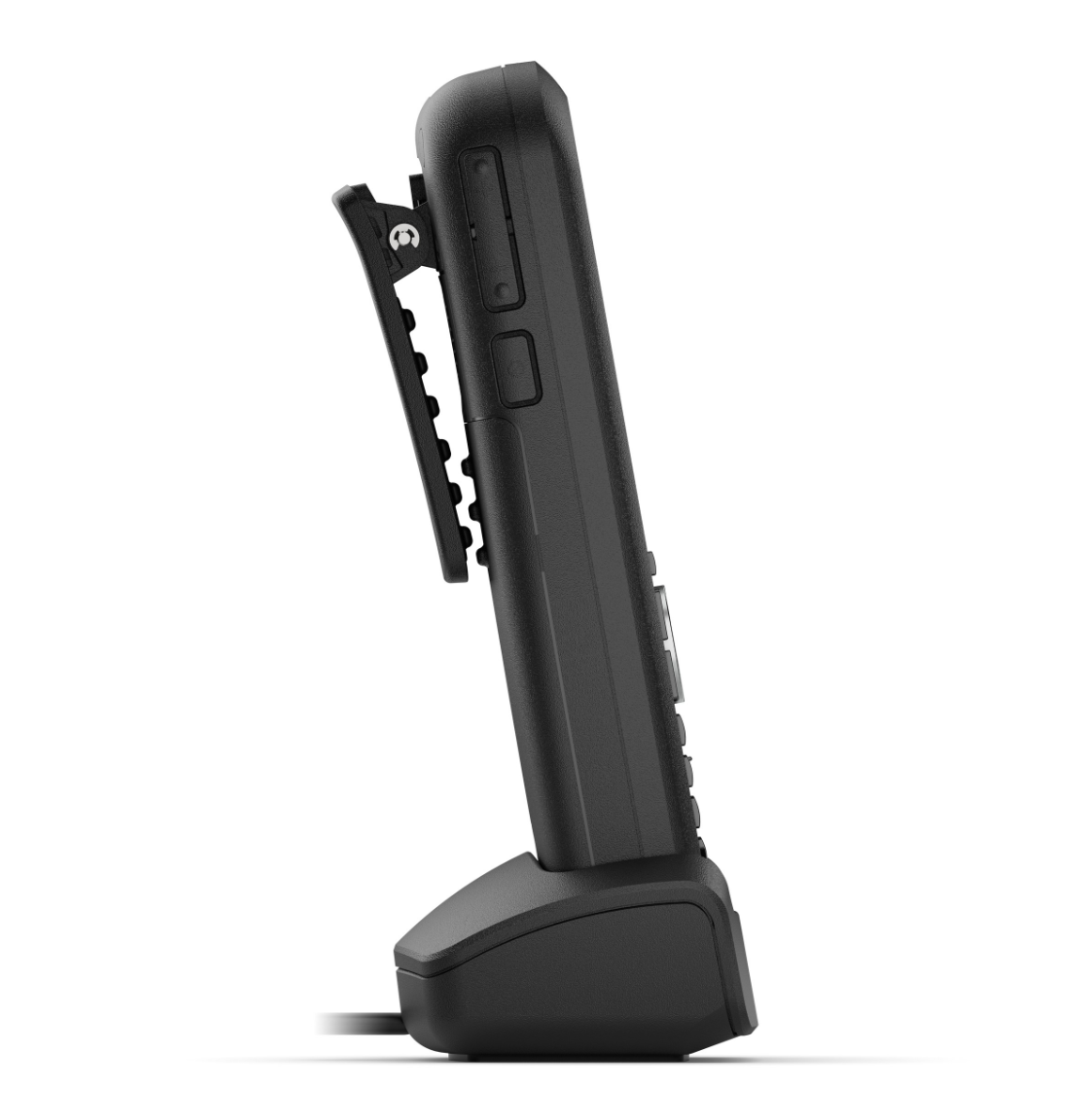

  • Weight: approx. 138g (handset with battery+belt clip)
  • Dimensions: approx. 122x48x22mm (LxWxD)
  • Connector: 3.5mm standard phone jack for wired headsets
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Hearing aid compatible (HAC)
  • Bluetooth LE for headset connection
  • Alarm key on the top of the handset
  • Drop test 2m
  • IP protected housing
  • Large temperature range (-10°C to 55°C)
  • Part number: 00004424

Battery:

  • Type: Lithium-ion, 1100mAh, 3.7V, 4.1 W
  • Talk time WB: Up to 12 hours
  • Talk time NB: Up to 17 hours
  • Standby time: Approx. 200 hours (10days)

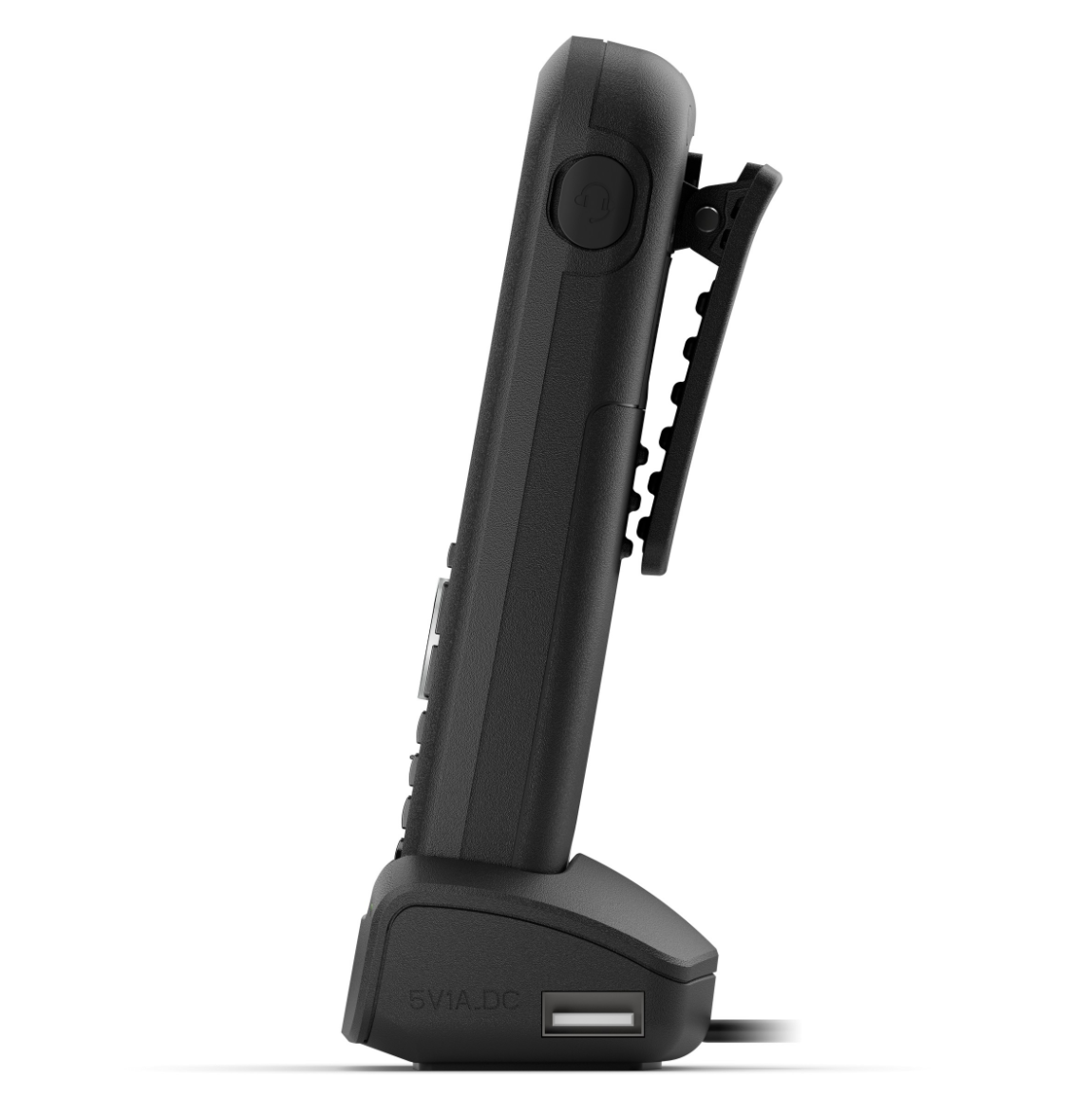

Charger:

  • Input: 5V DC, 2A
  • Charging indicator: Freen LED – light is on when handset is charging in cradle
  • USB port on charging cradle for daisy chaining a second cradle

Power Adapter:

  • Input power: 100-240 AC Volt, 50/50 Hz, 300mA
  • Output power: 5V 2A
  • Plug: interchangeable clips. EU and US Clips included
  • Charging condition: 5°C to 45°C

Range:

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters

DECT:

  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1920-1930 MHz (US)

Phone functions with compatible base station:

  • Two simultaneous calls
  • Local directory with 250 contact entries
  • Central directory (common local directory on base or external directory via LDAP)
  • 8 speed dial numbers (number keys 2-9)
  • Caller identification (CLIP)
  • Redial (via dialed calls list)
  • Call waiting
  • Auto answer
  • Call lists (all calls, missed, received, dialed calls)
  • 50 entries total
  • Hold
  • Call swapping (active call and call on hold)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conference on the phone
  • DND mode (do not disturb)
  • Hide own outgoing ID (CLIR)
  • Missed call notification
  • MWI – Voice message waiting notification

User Interface:

  • Display:
    • 5cm (2″) diagonal
    • 240 x 320 pixel
    • 262k TFT color LCD with backlight
  • Backlit keypad with 24 keys:
    • Standard ITU telephone keypad, 12 keys, 4×3, with star and pund/hash key
    • Three context-sensitive function keys
    • 5 navigation keys (left, right, up, down, OK)
    • Off -hook key, cancel key
    • Menu key
    • Three side keys (Volume up/down, mute)
    • Alarm key on the top of the handset
    • 28 keys in total
  • Comfortable and intuitive menu structure
  • Selection of ring tones
  • Tricolor LED indication of missed calls/new voice messages, low battery
  • Speakerphone
  • Mute microphone
  • Vibration alarm

Menu languages:

  • English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish, Russian, Croatian, Serbian, Slovenian

Installation:

  • Automatic registration to extension set on base
  • Software update:  Over the air via base station
  • Date and time synchronization from the base station

Compatible base stations:

  • (1) M300 Single-Cell Base, available in M325 Bundle, Snom PN 00003955 (EU)
  • 00003954 (US)
  • 00004161 (AU)
  • M700 DECT Single Cell / Multicell Base, snom PN 00003928 (EU), 00003929 (US)
  • M900 DECT Multicell Base, Snom PN 00004426 (EU), 00004441 (US)

Battery:

  • (2) Included: Li-Ion battery, model RTR001F01 Snom PN 00003932
