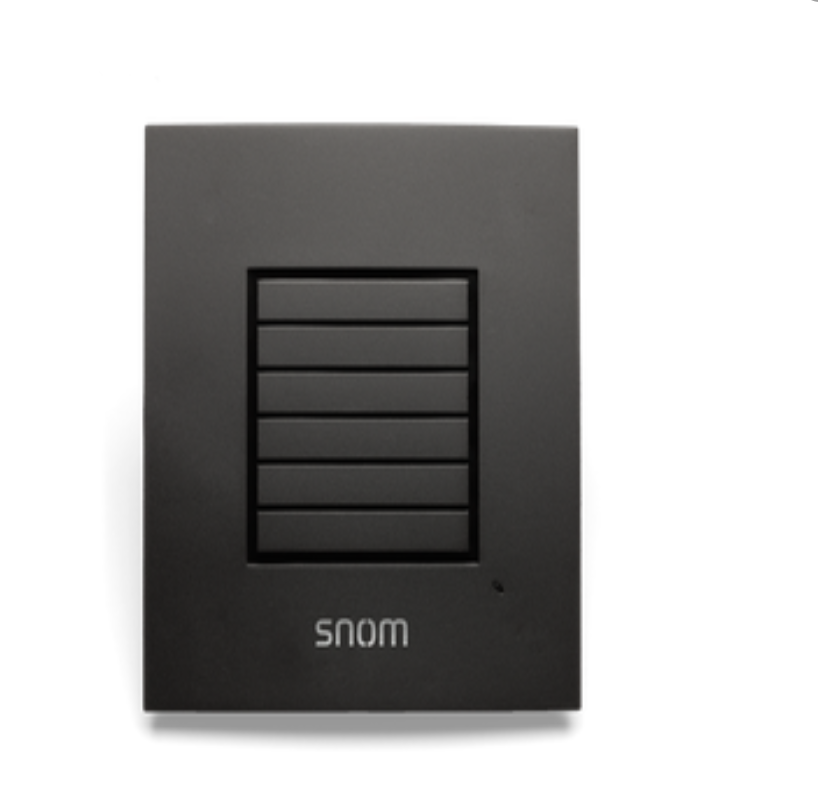

Snom M5 DECT base station repeater

$0.00

SKU: Snom M5 Category: Tags: ,

  • Extending the range of your DECT solution

    This wall mounted repeater increases the reception range of the M700 and M300 base stations, allowing for free movement between stations and for DECT calls to continue uninterrupted as the speaker moves around an area.

    The M5 DECT Repeater is a simple and easy to deploy solution. It serves as a useful tool in locations requiring mobile coverage across several floors or throughout large buildings. The repeater increases the reception range of individual bases and handsets and bridges gaps between base stations, promoting free movement by creating a single, seamless network. The M5 repeater offers superior audio quality in both wideband and narrowband calls.

    Quick summary

    • Support single and multi-cell
    • Increase the range without Ethernet
    • Wideband audio
    • Up to 5 simultaneous calls
    • Daisy chaining

Description

General Information

  • Weight of repeater: approx. 126g
  • Weight of power adapter: approx. 120g
  • Dimensions: approx. (mm) 118x129x33 (WxHxD)
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Power: Power adapter 5,5 V 600 mA included
  • Plugs: patented interchangeable clips, EU and US clip included, UK clip available optionally
  • Color: black

User Interface

  • LED indicator, two colors
  • Reset key

Features

  • 12 slots
  • 2 simultaneous wideband calls
  • 5 simultaneous narrowband calls
  • Slot multiplexing
  • Slot packing
  • Full slot move over request

Range

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters
  • (Repeater for indoor use only)
DECT

  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1910-1930 MHz (Latin America)
    • 1920-1930 MHz (US)
  • Four power levels: 14, 17, 20, 24 dBm
  • Receiver sensitivity: -92 dBm
  • Seamless handover
  • Wideband voice (HDSP) Basic
  • Interoperability, Phase I (CAT-iq 1.0, 2.0)
  • DECT encryption

Standards Conformance

  • EN 301406 (TBR6)
  • EN 30176 – 2 (TBR10)
  • EN 60950 – 1 (Safety)
  • IEC60950 -1
  • CSA c-CSA-us / UL60950 – 1
  • EN 301489 (EMC, ESD)
  • RF (EMF, SAR)
  • FCC part 15D, conducted & radiated
  • FCC part 15B
  • RSS213

Installation

  • Registration on DECT base
  • Wall mounting
