TS-473A-8G

$0.00

SKU: TS-473A-8G Categories: , Tag:

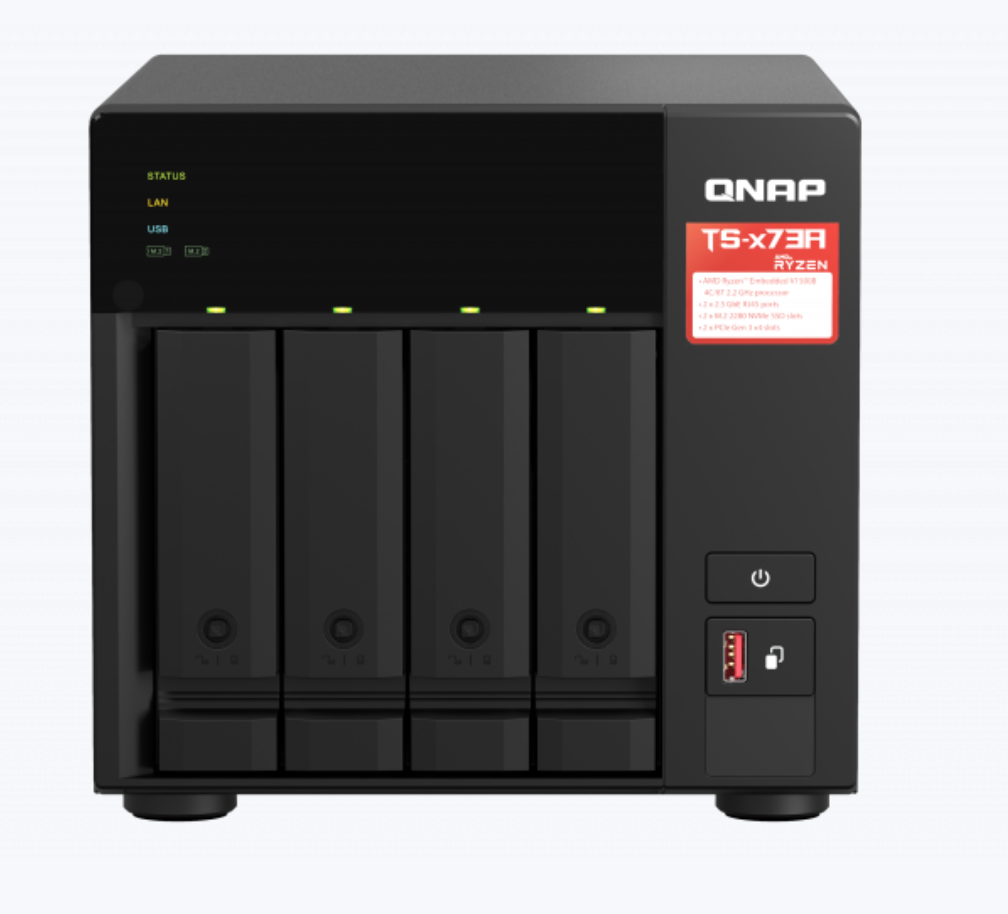

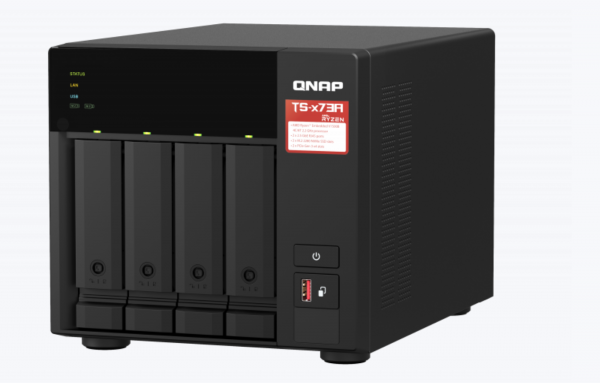

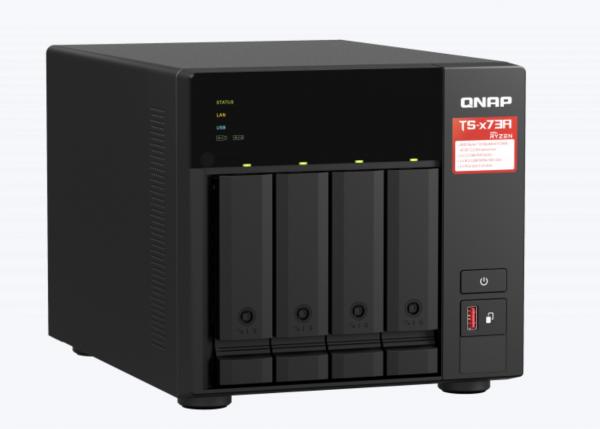

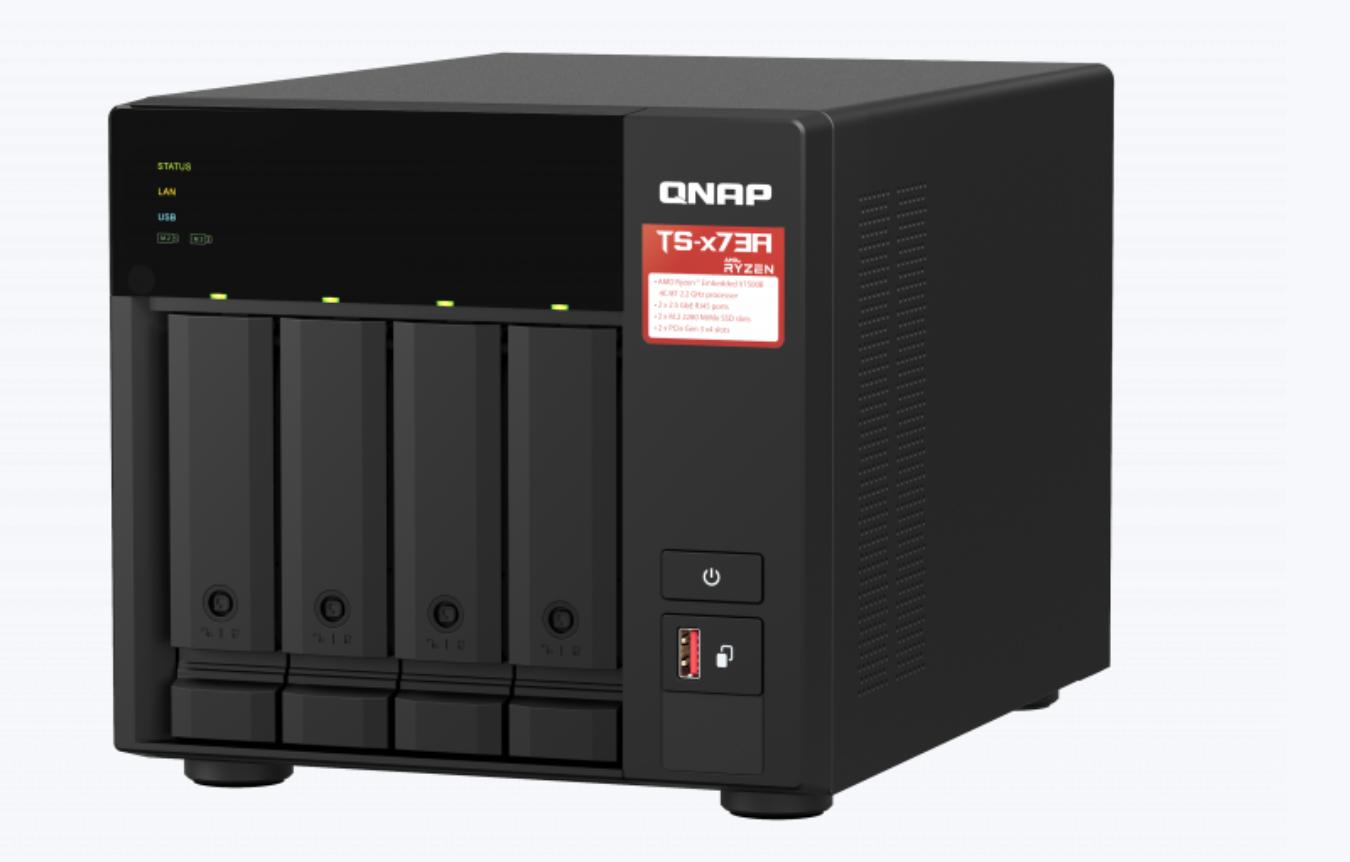

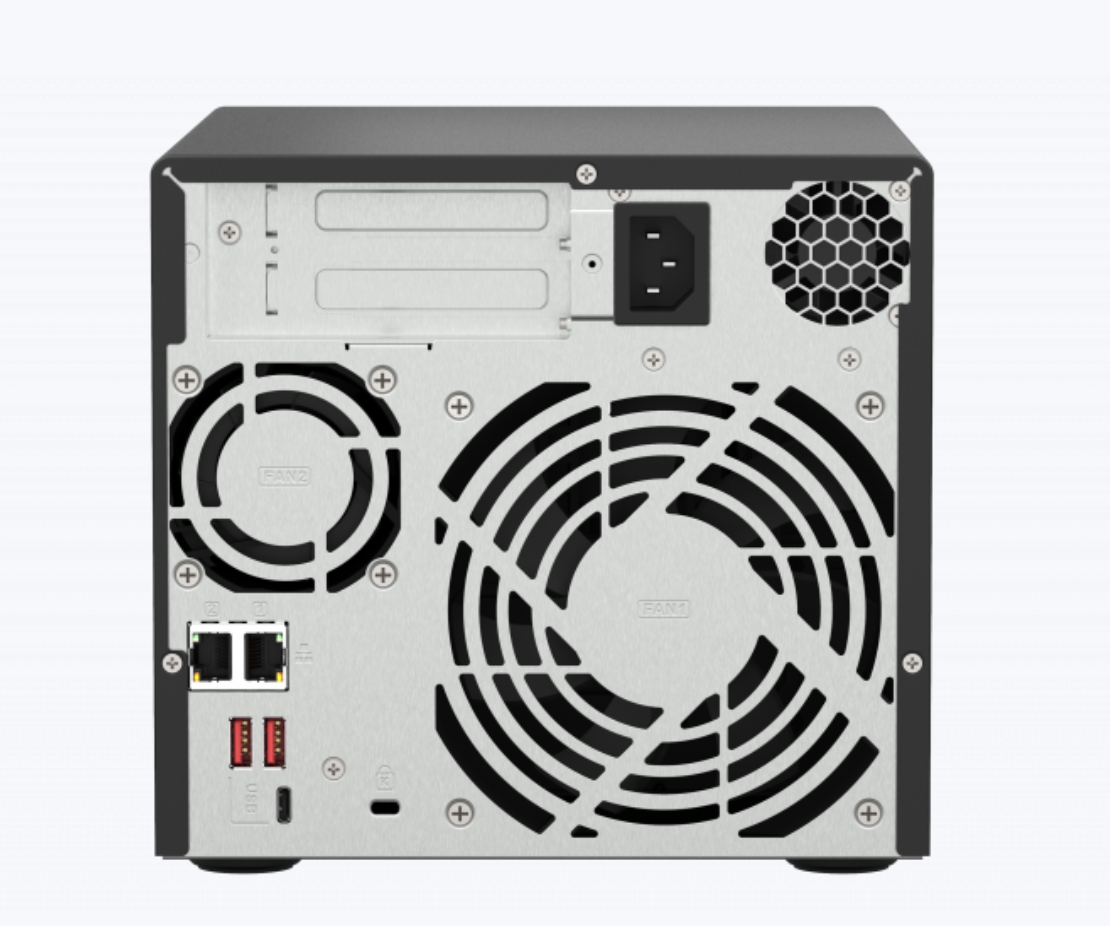

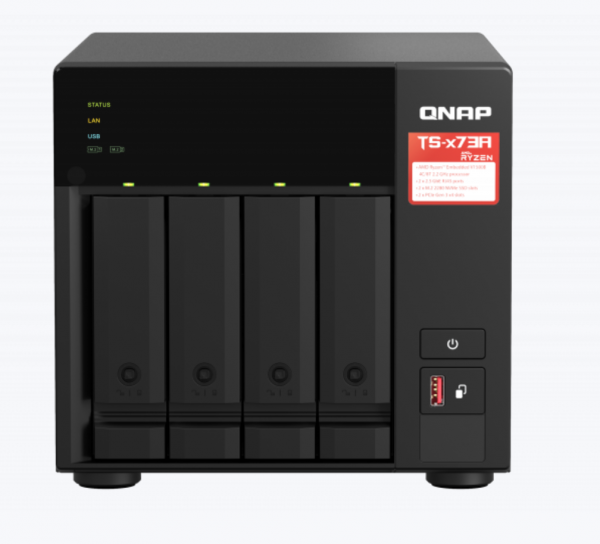

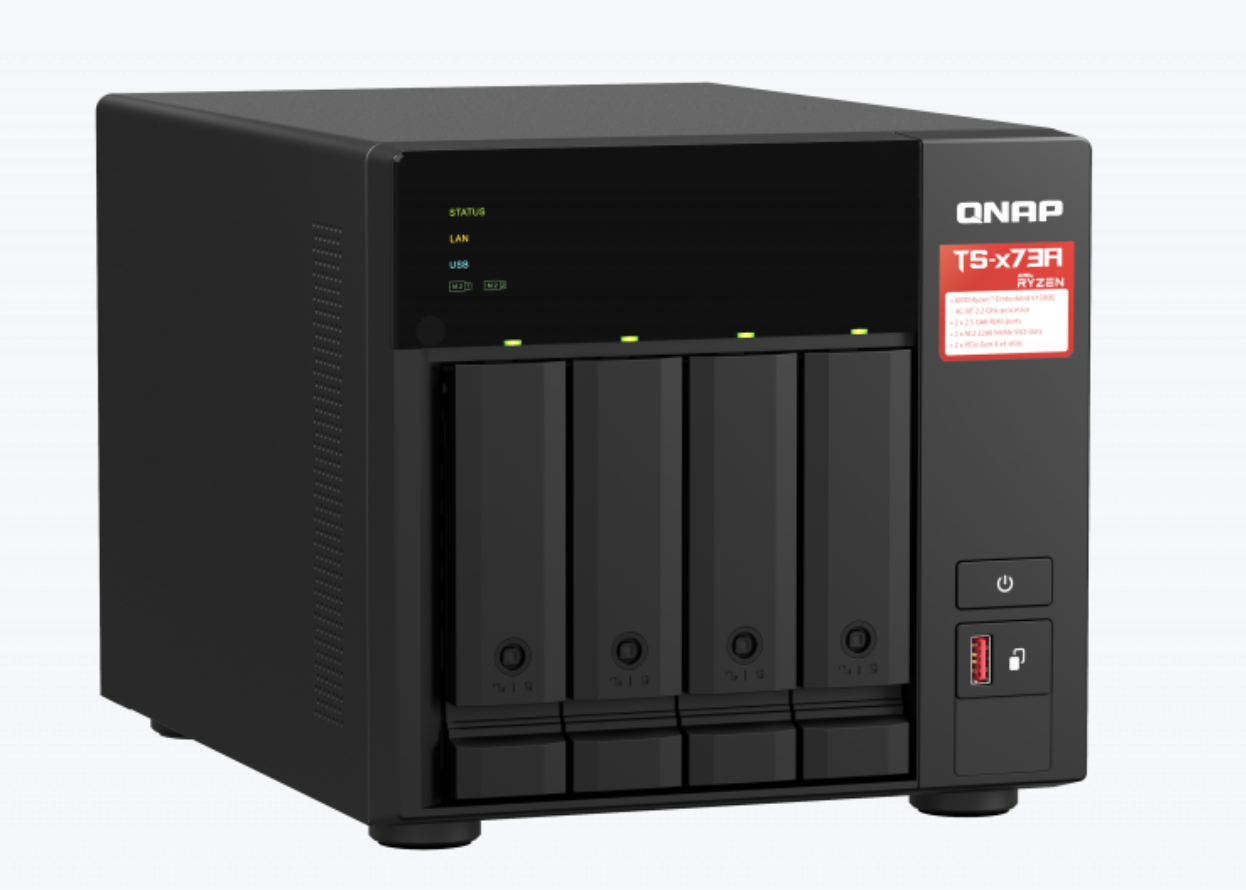

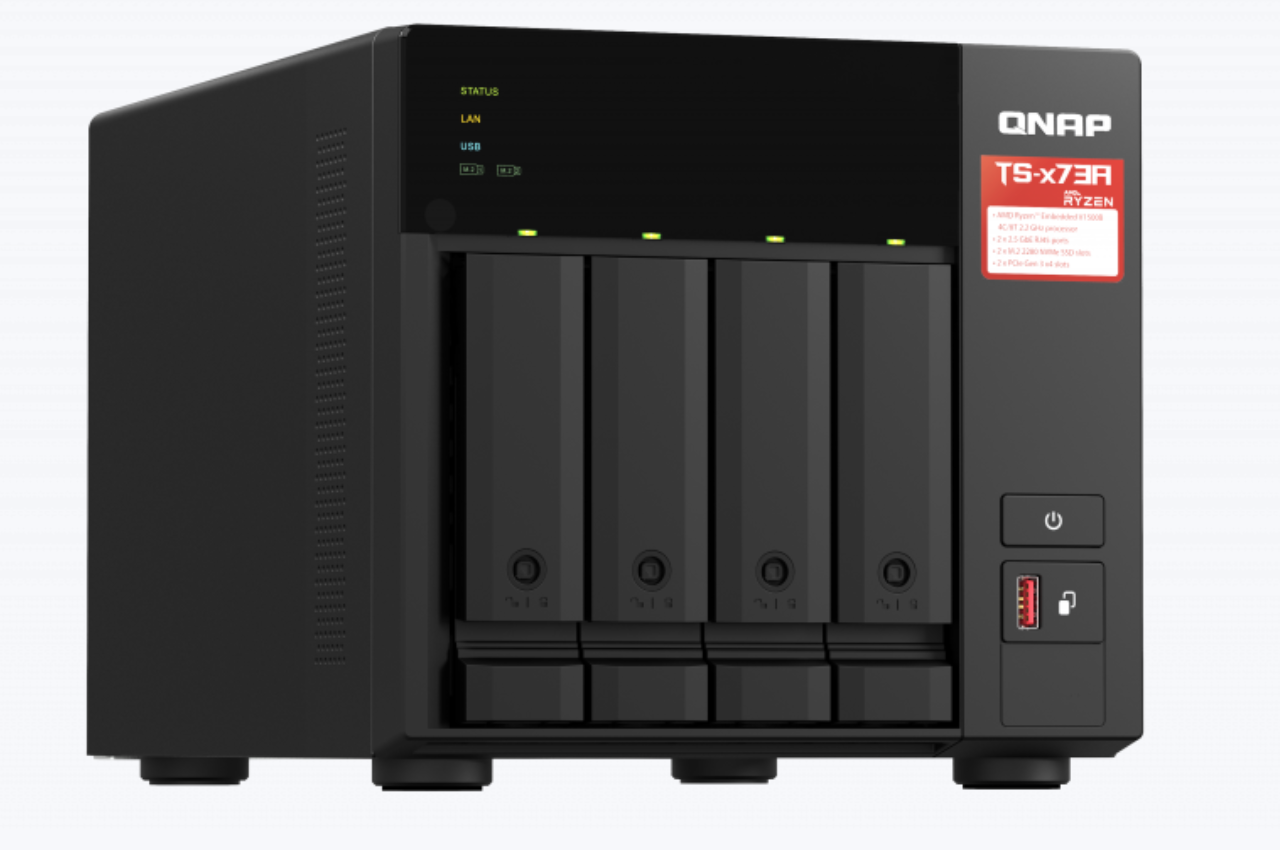

TS-473A-8G
4-Bay NAS | AMD Ryzen™ V1500B 2.2 GHz Quad Core
RAM: 8GB DDR4 RAM (1 x 8GB) | MAX RAM: 64GB DDR4 ECC RAM (2 x 32GB) | 5GB DOM (Dual boot OS protection)
Internal Storage: 4 x 3.5″ / 2.5″ SATA 6G | Hotswap | 2 x M.2 NVMe Gen3 x1 Slots
External Ports: 3 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-C, One Touch Copy Button
GPU: Optional. Dedicated GPU Expandable by PCIe Slot | Dedicated GPU applicable for QTS Apps
IR Sensor: Built-In | IR Remote: RM-IR004 (Optional)
GbE Ports: 2 x2.5 GbE (RJ45), Optional 5GbE,10GbE
PCI-E: 2 x PCIe Slot x4 (Gen3) , Support QXP Card / QM2 Card / 2.5,5G,10G LAN Card / FC Card / Dedicated GPU
OS: QTS (Pre-Installed) / QuTS hero | File System: EXT4 (QTS) / ZFS (QuTS hero)
RAID Level: RAID 0, 1, 5, 6, 10, 50, 60, TP(QuTS hero), TM(QuTS hero), JBOD | Support QTier™ Auto Tiering(QTS)
Expansion Ports (miniSAS): QXP-820S-B3408 / QXP-1620S-B3616W (Optional) | Expansion Units: 16 x TL SAS JBOD / 2 x TL SATA JBOD / 8 x VJBOD
Surveillance Station: N/A | QVR Elite: 2 x IP Cam Licenses | QVR Pro: 8 x IP Cam Licenses (QTS)
VMware Ready | Hyper-V Ready | Citrix Ready
3 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)

Description

CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memory

For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot 2 x M.2 2280 PCIe Gen3 x1 slots

The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2(2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps
HDMI Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 7.41 × 7.85 × 11.06 inch
Weight (Net) 11.09 lbs
Weight (Gross) 13.32 lbs
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 19.576 W
Power Consumption: Operating Mode, Typical 29.792 W

Tested with drives fully populated.
Fan System fan: 1 x 120mm
CPU fan: 1 x 60mm
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 2000
