QSW-M2108-2C

$0.00

SKU: QSW-M2108-2C Categories: , Tags: ,

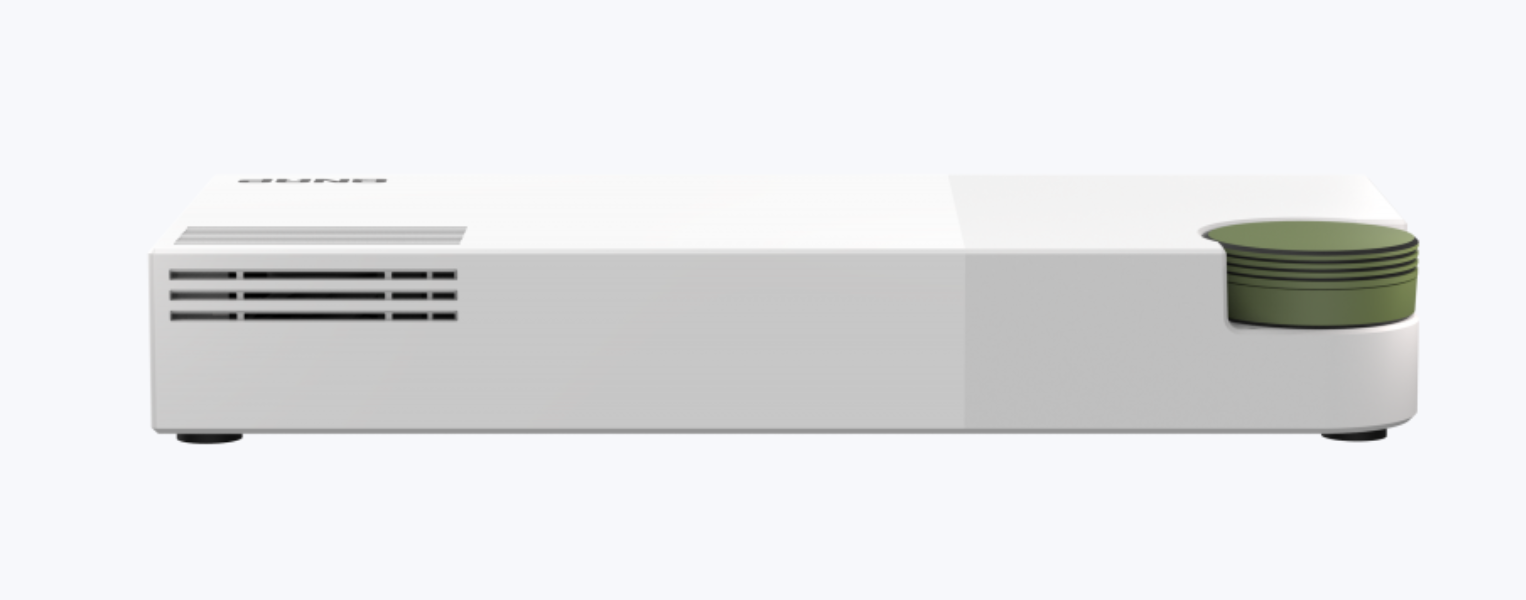

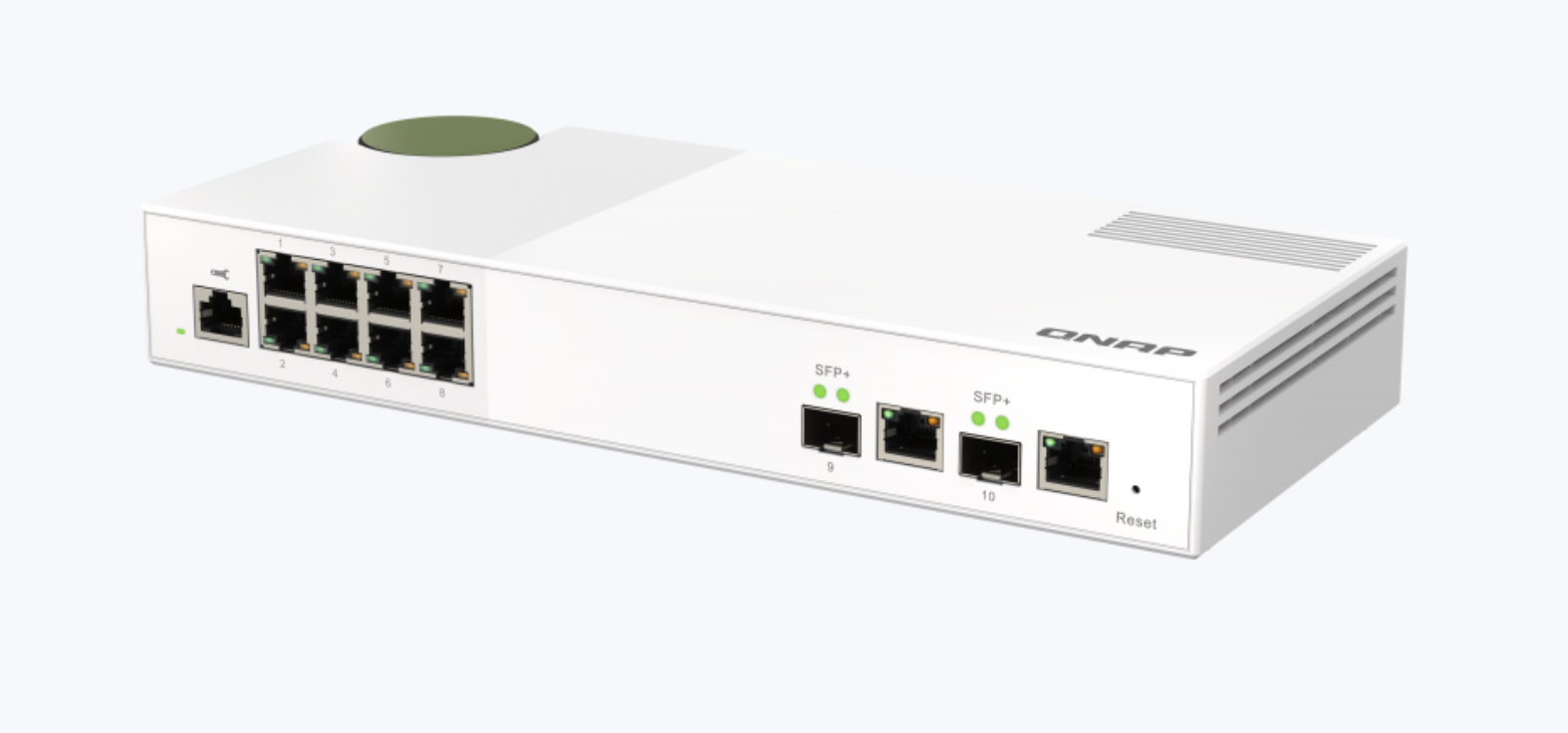

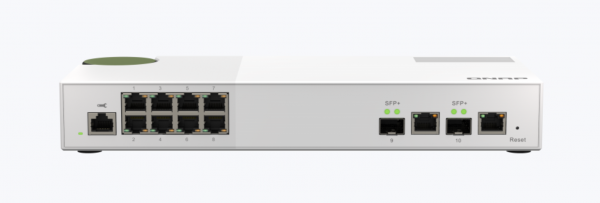

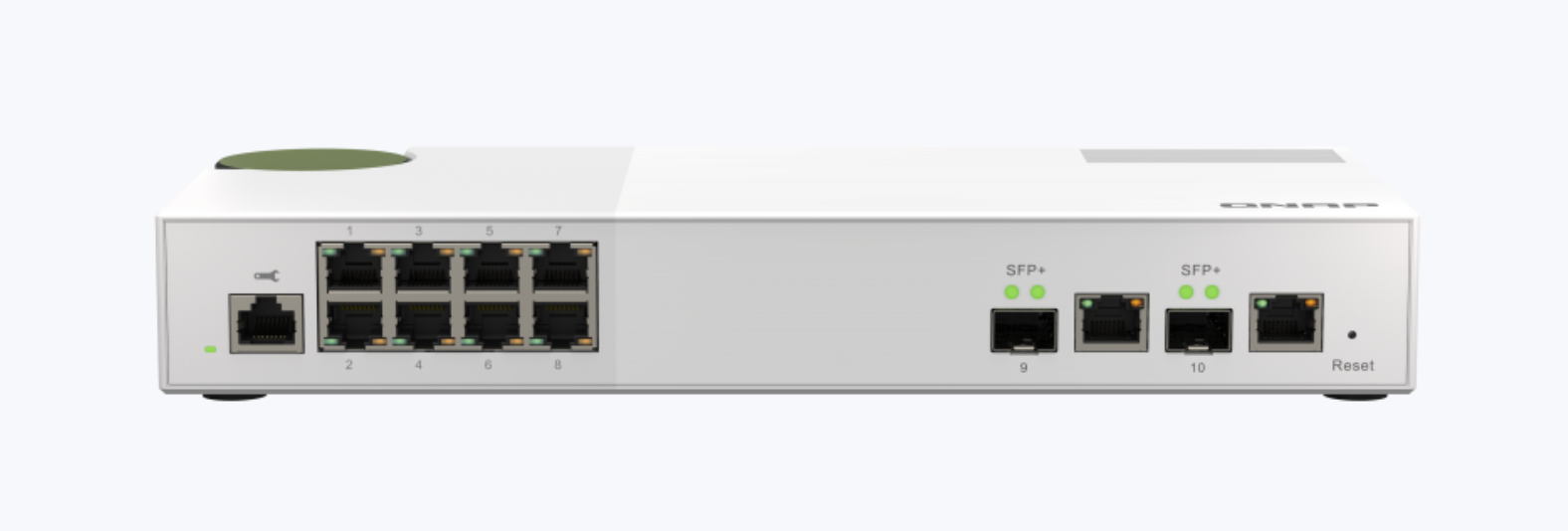

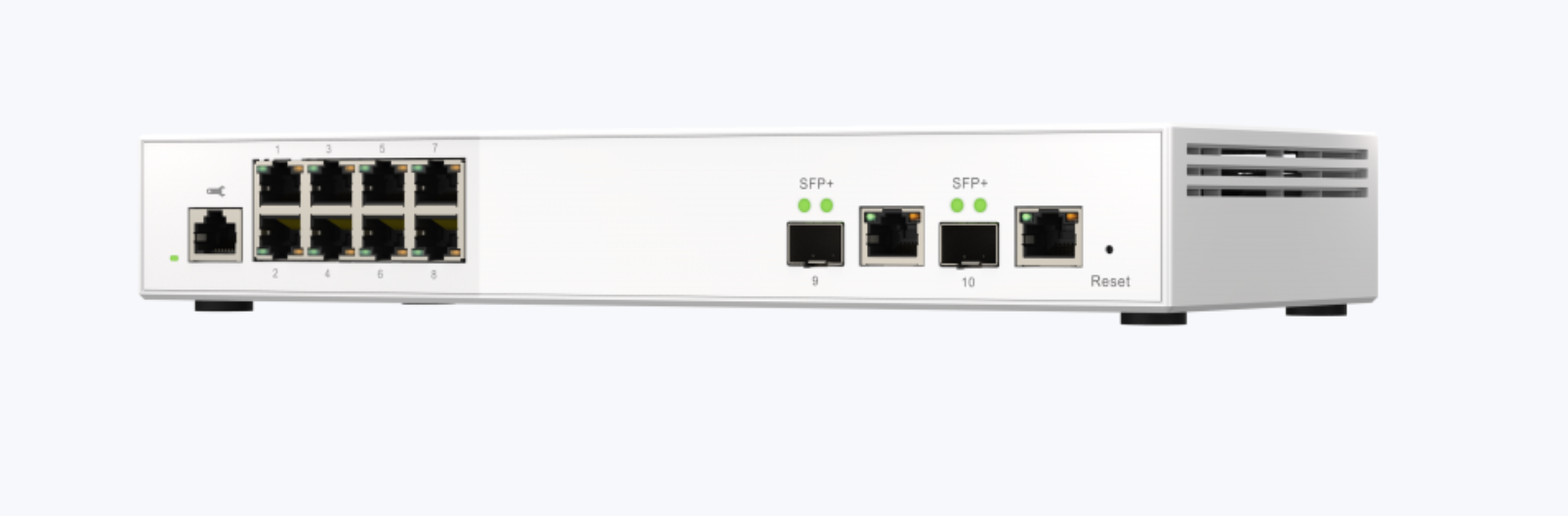

QNAP QSW-M2108-2C
2 Ports 10GbE + 8 Ports 2.5GbE Layer 2 Managed Switch
Switching Capacity: 96Gbps | Management Type: Web Managed
2.5GbE LAN Ports: 8 x RJ45 Ports | 10GbE LAN Ports: 2 x 10GbE SFP+/RJ45 Combo Ports
2.5GbE RJ45 Ports support 2.5GbE/1GbE/100MbE | 10GbE RJ45 Ports support 10GbE/5GbE/2.5GbE/1GbE/100MbE | 10GbE SFP+ Ports support 10GbE/1GbE
Support Rate Limiting, IGMP Snooping, IP/MAC ACL, QoS, Port Mirroring, Trunking/LACP, VLAN, LLDP, WOL, Jumbo frame, etc.
Support IEEE 802.3u/ab/bz/an/ae/z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3p, IEEE 802.3az, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1AB
2 Years Carry-In Warranty (Optional: Upgrade to Onsite Warranty)

Description

Management Type Web Managed
Number of Ports 10
10GbE SFP+/RJ45 Combo Ports 2
2.5GbE (RJ45) 8
Power Supply Description Adapter
Max. Power Consumption 36W
Input Power Type DC
Input Voltage Range 12V
MAC Address Table 16K
Total Non-Blocking Throughput 40Gbps
Switching Capacity 80Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan PWM double ball bearing fan x 1
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
(IEEE 802.1p Class of Service)
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 42.5 x 290 x 127 mm
Weight (Net) 1.12 kg
Weight (Gross) 1.54 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS B
Jumbo Frames 9K
Warranty 2 Years
