TS-464-4G

$0.00

SKU: TS-464-4G Categories: , Tag:

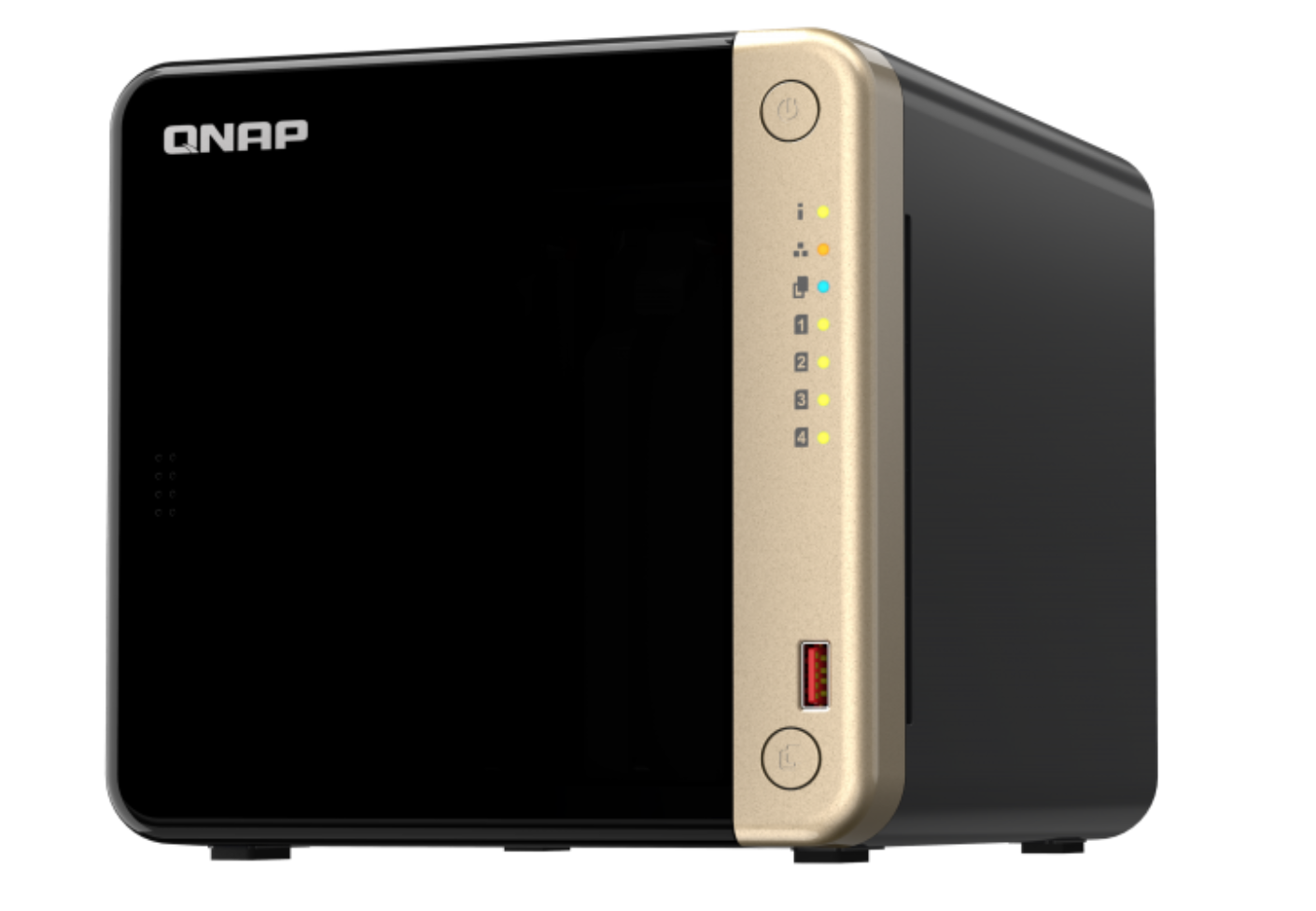

TS-464-4G
4-Bay NAS | Intel Celeron N5105 / N5095 Quad Core, burst up to 2.9GHz
RAM: 4GB DDR4 RAM (1 x 4GB) | MAX RAM: 16GB DDR4 RAM (2 x 8GB) | 4GB DOM (Dual boot OS protection)
Internal Storage: 4 x 3.5″ / 2.5″ SATA 6G | Hotswap | 2 x M.2 2280 NVMe (Gen3 x1) Slots
External Ports: 2 x USB2.0, 2 x USB3.2 Gen 2 | 1 x HDMI 2.0
GPU: Intel UHD Graphics, Support 4K H.264 / H.265
IR Sensor: Built-In | IR Remote: RM-IR004 (Optional)
GbE Ports: 2 x 2.5GbE (RJ45), Optional 5GbE / 10GbE
PCI-E: 1 x PCIe Slot (Gen3 x2), Support Wi-Fi Card / QM2 Card / 2.5G,5G,10G LAN Card
OS: QTS | File System: EXT4 | RAID Level: RAID 0, 1, 5, 6, 10, 50, 60, JBOD | Support QTier™ Auto Tiering
Surveillance Station: N/A | QVR Elite: 2 x IP Cam Licenses | QVR Pro: 8 x IP Cam Licenses
3 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)

Description

CPU Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics
Floating Point Unit Yes
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 4GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (2 x 8GB)
Memory Slot 2 x SODIMM DDR4

  • For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay
  • 4 x 3.5-inch SATA 6Gb/s (TS-464-4G)

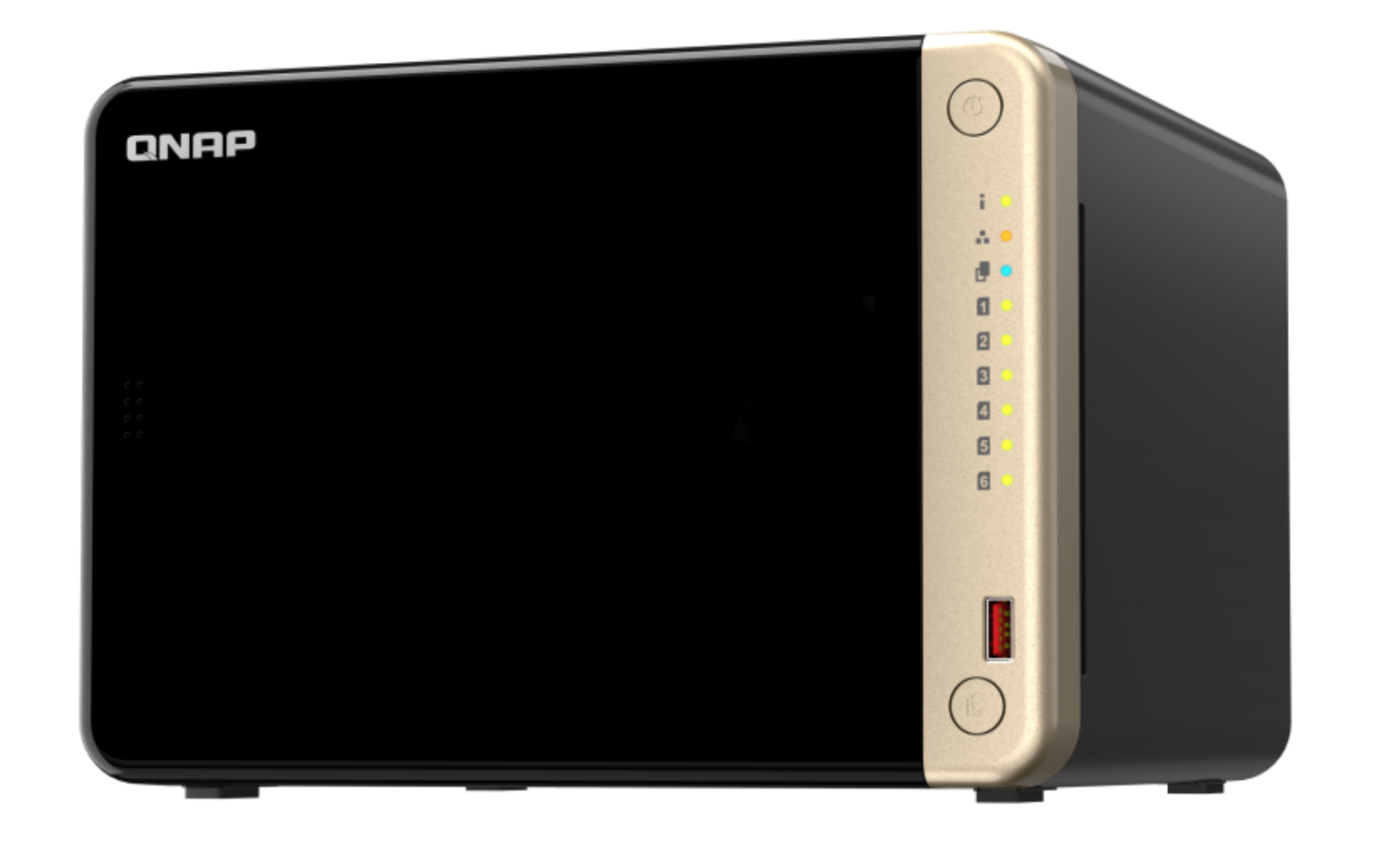

  • 6 x 3.5-inch SATA 6Gb/s (TS-664-4G)
  • The system is shipped without HDD
Drive Compatibility
  • 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor  (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 6.61 × 6.69 × 8.9 inch / 6.61 × 9.25 × 8.9 inch
Weight (Net) 4.98 lbs / 6.39 lbs
Weight (Gross) 7.94 lbs / 10.05 lbs
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 21.618 W
Power Consumption: Operating Mode, Typical 40.536 W

Tested with drives fully populated.
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500
