M.2 NVMe SSD SNV3400-400G

$0.00

SKU: HD-SNV3440 Categories: , Tags: ,

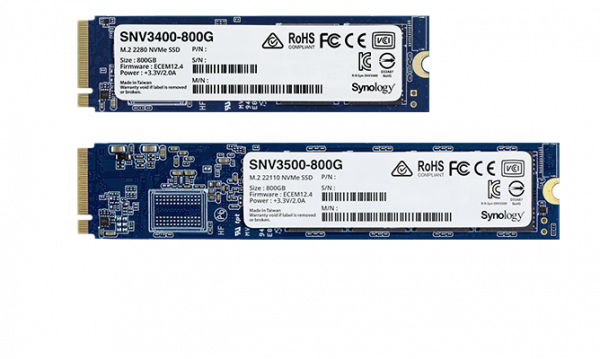

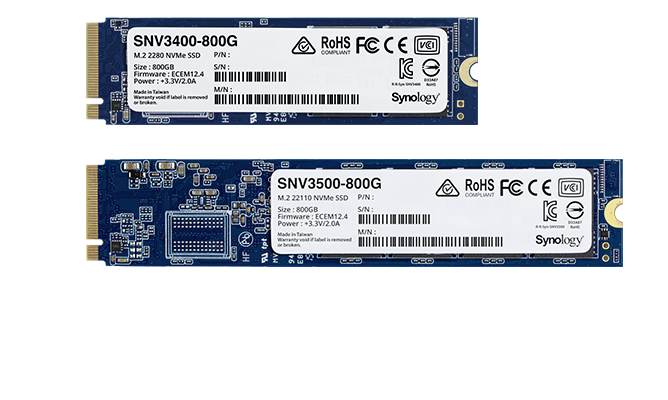

SNV3400-400G / SNV3400-800G – M.2 2280 NVMe SSD
SNV3500-400G / SNV3500-800G – M.2 22110 NVMe SSD• Over 205,000/40,000 sustained 4K random read/write IOPS for demanding I/O
• Suitable for intensive caching workloads at up to 500 TBW (400GB) and 988TBW (800GB)
• End-to-end data protection ensures data integrity
• Actionable insight helps make optimal use of SNV3000 series SSD performance and longevity
• Proven interoperability with Synology systems through rigorous validation

SNV3400 Compatible Models:
Through Internal M.2 Slots: DS1821+, DS1621xs+, DS1621+, DS1520+, DS920+, DS720+, DS420+, DS1019+, DS918+
Through E10M20-T1:  RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, RS820RP+, RS820+, DS2419+, DS1819+, RS2818RP+, DS1618+
Through M2D20: RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, RS820RP+, RS820+, DS2419+, DS1819+, RS2818RP+, RS2418RP+, RS2418+, DS1618+
Through M2D18: RS820RP+, RS820+, DS2419+, DS1819+, RS2818RP+, RS2418RP+, RS2418+, DS1618+

Description

硬體規格

一般規格

SNV3000 系列

容量



 400 GB

尺寸規格



 SNV3400-400G: M.2 2280

SNV3500-400G: M.2 22110

SNV3400-800G: M.2 2280

SNV3500-800G: M.2 22110

傳輸介面



 NVMe PCIe 3.0 x4

效能

Sustained Sequential read (128 KB, QD32)



 3,100 MB/s

Sustained Sequential write (128 KB, QD32)



 550 MB/s

Sustained Random Read (4KB, QD256)



 205,000 IOPS

Sustained Random Write (4KB, QD256)



 40,000 IOPS

備註



 All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.

耐寫度與可靠度

寫入兆位元組 (Terabytes Written，TBW)*



 500 TB

每日全碟寫入次數 (Drive Writes Per Day，DWPD)



 0.68

平均故障間隔時間 (Mean Time Between Failures，MTBF)



 1.8 百萬小時

無法修正位元錯誤率 (Uncorrectable Bit Error Rate，UBER)



 < 1 sector per 1017 bits read

斷電保護



 SNV3400-400G: 否

SNV3500-400G: 是

SNV3400-800G: 否

SNV3500-800G: 是

保固*



 5 年

備註





  • 基於 JESD219A 企業的工作負載。
  • 5 年有限保固服務涵蓋範圍為至保固期結束，或達到硬碟規格所標示之耐寫度上限，以較早結束者為準。(查看更多內容)



電源消耗功率

供電電壓



 3.3V (± 5%)

讀取 – 運作中



 SNV3400-400G: 3.2 W

SNV3500-400G: 3.7 W

SNV3400-800G: 4.5 W

SNV3500-800G: 5.1 W

寫入 – 運作中



 SNV3400-400G: 3.2 W

SNV3500-400G: 3.4 W

SNV3400-800G: 4.5 W

SNV3500-800G: 5.0 W

閒置



 2.0 W

備註



 電源消耗功率可能因設定、平台不同而有所差異。

溫度

作業溫度



 0°C 至 70°C (32°F 至 158°F)

儲存溫度



 -40°C 至 85°C (-40°F 至 185°F)

其他項目

大小 (高 X 寬 X 深)



 SNV3400-400G: 3.5 mm x 22 mm x 80 mm

SNV3500-400G: 4.5 mm x 22 mm x 110 mm

SNV3400-800G: 3.5 mm x 22 mm x 80 mm

SNV3500-800G: 4.5 mm x 22 mm x 110 mm

認證機構





  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS



相容性

適用機種





Additional information

Dimensions 0.35 × 2.2 × 8 cm
